18 Filling Head Juice Bottling Machine

18 Filling Head Juice Bottling Machine

    • 18 Filling Head Juice Bottling Machine
    • 18 Filling Head Juice Bottling Machine
  • 18 Filling Head Juice Bottling Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: OEM
    Certification: CE,ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden package
    Delivery Time: 35 working days
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Name: Juice Bottle Filling Machine Capacity: 4000-5000 Bottles Per Hour(500ml Bottle)
    Size(L*W*H): 2400*1850*2400mm Weight: 3500KG
    Filling Head: 18 Pcs Voltage: 380V/220V (can Be Cuntomized)
    Filling Temperature: 85-92℃ Power: 3.1KW
    High Light:

    18 Filling Head Juice Bottling Machine

    ,

    mango Juice Bottling Machine

    ,

    500ml Juice Bottling Machine

    18 Filling Head Juice Bottling Machine



     Features:



    1. The juice filling machine is mainly used for bottling tea and juice , such as apple jucie , mango juice, orange juice and other fruit juice and ice tea .It can also be used for filling water , such as pure water and mineral water.

    2. The juice filling machine includes washing part ,filling part and sealing part all of the process is automatic.

    3. The juice filling machine adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east.

    4. The advanced programmed controller (PLC) is adopted to the juice filling machine to control the machine to run automatically,

    5. Transducer of the juice filling machine is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.

    6. It is convenient to operate with higher automation because every part of the juice filling machine is inspected to run with photo electricity.



    - Juice filling machine integrates bottle washing, liquid filling, bottle capping in one unit;

    - There is recycling system applied in juice filling machine;

    - The filling temperature can reach 85 degree;

    - All electric parts are applied well-known brand;



    Description:



    No Details

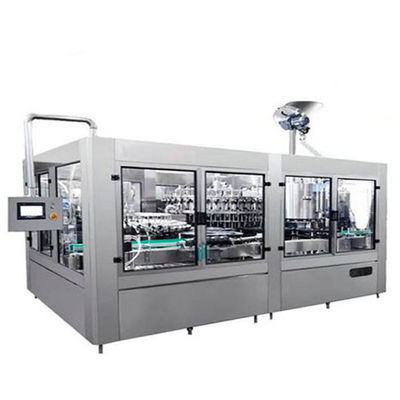

    1 This machine is combined with washer, filler and capper 3 seperate systems in one machine, it is an idea equipment for all kinds of fruit juice drinks, energy drinks and tea drinks.
    2 If customer wants to use this machine for pure water, mineral water filling production, it only need to adjust some parts of machine.
    3 Advanced filling technology and rich exparience manufacturing, this machine can fill more quickly, stable, accurate, equipped with a perfect reflux system.
    4 It has CIP cleaning function, which can clean beverage tank, pipeline and filling valve and all other parts contacting beverage.
    5 Using international brand touch screen control, PLC computer control, inverter control technology to make machine operation more easy.



    Parameters:



    Item                 RCGF12-12-6  RCGF18-18-6  RCGF24-24-8  RCGF32-32-10 RCGF 40-40-13

    Capacity

    bottles per hour

    2000-3000 4000-5000 7000-8000 9000-11000 12000-14000

    Suitable bottle

    diameter

    50-90mm

    200-2000ml

    Filling temperature

    85-92℃

    Machine weight

    KG

    2500 3500 4500 5000 7000

    Machine size

    L*W*H (mm)

    2400*1600

    *2400

    2400*1850

    *2400

    3100*2200

    *2400

    3600*2500

    *2400

    4000*2800

    *2400



































    Details:



    Bottle inlet:

    The air feeding device is adopted to feed the bottle, and the bottle diameter method is used to hang the bottle. The bottle loading speed is fast and the bottle will not deform

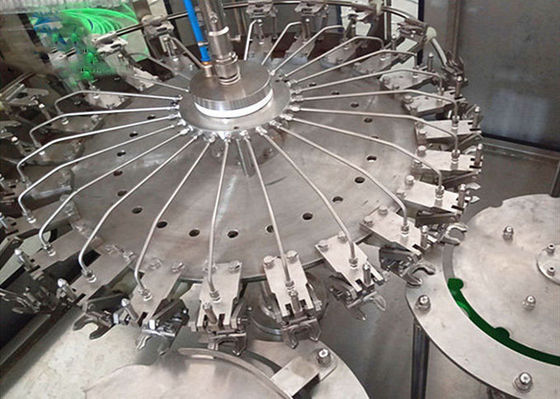

    Bottle rinsing:

    It adopts advanced bottle neck griping technology to avoid contact with the screw mouth of the bottle, more sanitary.

    The delivery of the bottle in the machine all adopts the card bottle neck griping technology, so if customee wants to change different bottle shapes with the same bottle mouth, there is no need to adjust the height of the equipment, just replace the corresponding protective plate according to the diameter of the bottle body.



    Cap loading system:

    The cap loading system adopts rotary type cap arraning system with a speed of up to 20,000 pcs per hour. The cap is stored in the cap

    hopper, and the motor drives the internal rotation, so that the ccap is arranged in an orderly manner and sent to the outlet of the cap.



    Electric cabinet:

    The whole machine operating electric control cabinet is inside the machine. All single equipment can run and stop in the control cabinet, all electric parts like PLC, frequency inverter, contactor...etc are located here, with stainless stell box to protect it, very safe and portable.





    18 Filling Head Juice Bottling Machine18 Filling Head Juice Bottling Machine
