|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden package|
|Delivery Time:||35 working days|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||15 Sets Per Months|
|Name:||Carbonated Drink Filling Machine||Capacity:||2500BPH Based On 500ml Bottle|
|Application:||Carbonated Soft Drink, Juice, Water||Cap Type:||Screw Cap|
|Control:||PLC & Touch Screen||Bottle Volume:||0.2-2Liter|
|Filling Type:||Isobaric Filling||Voltage:||380v 50hz 3phase Or By Order|
2500 BPH Bottling Machine,
Carbonated Beverage Bottling Equipment,
Carbonated Drink Filling Machine

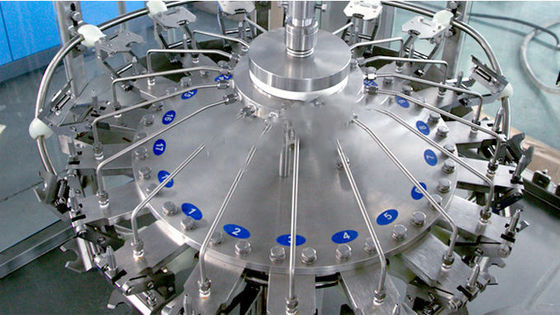

Isobaric filling 2500 BPH Carbonated Drink Bottling Machine
I. Products Introduction
1. This Carbonated Drink Bottling Machine is used in carbonated water, carbonated beverage carbonated water packaged in polyester bottle , washing ,filling and capping are intergrated in one machine .
2. The advanced technology is used in the design ,gravity fixed liquid surface filling is used ,the amount of liquid is controlled accurately ,the filling is fast ,the amount of liquid is controlled accurately ,the dropping and leakage is avoided.
3. Spring frame is used in the washing process, the empty bottle can turn over 180 degree along the conveying rail ,there are two times of interal and exteral washing ,the efficiency is high.
4. Magnatic torque is used for screwing capping ,the power of screwing capping can be adjusted without steps and the power also can be fixed ,and the cap will not be damaged and the sealing is reliable .
5. The whole machine is controlled by PLC, the liquid in the storage tank can be controlled automatically .the filling and capping process will be stopped when there is no bottle or the cap is no available or the bottle is cramped wrongly.
II. Technical Parameters:
|washing, filling and capping heads No.||8-8-3||12-12-6||18-18-6||24-24-8|
|Bottle Volume Range||volume=330-2000ml||φ=50-110 H=150~340mm volume=330-2500ml|
|Motor power(kw)||Main motor||Main motor 3.5kw||Main motor 4.0kw||Main motor 4.8kw|
|Overall dimensions (mm)||1.9kw||2450*1800*2400||2650*1900*2400||2900*2100 *2400|
|Model||CGFD 32-32-8||CGFD 40-40-10||CGFD 50-50-12||CGFD 60-60-15|
|washing, filling and capping heads No.||32-32-8||40-40-10||50-50-12||60-60-15|
|Bottle Volume Range||volume=330-2000ml||φ=50-110 H=150 ~340mm volume=330-2500ml|
|Motor power(kw)||Main motor 7.6kw||Main motor 8.3kw||Main motor 9.6kw||Main motor 15Kw|
|Overall dimensions (mm)||4100*2000 *2400||4550*2650 *2400||5450*3210 *2400||5500*3510 *2400|
III. Details Show
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Bottle Inlet (Air Conveyor)
➢All Stainless Steel 304 include the all the connection parts and bottle exchange part .
➢Big motor Air fan
➢Steady running for the machine . Strong Machine . Can be customizer the length and design .
