| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-50000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets/month |
| Name: | Silver Gray | Cap Style: | Glass Bottle |
|---|---|---|---|
| Dimension(L*W*H): | 2980*2200*2250 Mm | Weight: | 4500KG |
| Power: | 7KW | Packaging Type: | Glass |
| Capacity: | 8000-10000BPH | Application: | Beverage |
| High Light: | Monobloc Carbonated Drink Bottling Machine,3 In 1 Monoblock Bottling Machine,10000 BPH Bottling Machine |
||

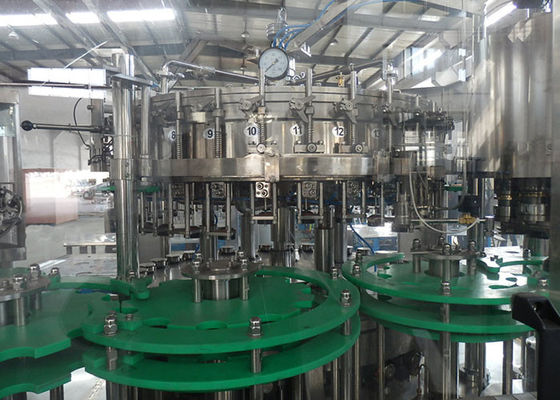

Silver Gray 3 In 1 Monobloc Carbonated Drink Bottling Machine
Design basis:
★1. Raw Water Quality Report: Required to be Provided by Users
★2. Beverage technological process: users are required to provide (our company can also provide related beverage formulations)
★3. Equipment Flow:Water Making Equipment Material → Distribution System → Beverage Mixer → Filler → Conveyor Chain → Warm Bottle Machine → Lamp Inspection → Packaging Equipment → Finished Products
★4. The design and manufacture of control equipment, measuring instruments and electrical equipment conform to relevant regulations and standards.
|
Optional carbonated drink making machines in the carbonated filling line |
||||||
|
Drink carbonator |
Output |
Mixing precision |
Purity of CO2 |
Dimension |
Weigh |
Power |
|
QHS-1000 |
1T |
2% |
99.9% |
1000*900*1900mm |
500Kg |
1.5Kw |
|
QHS-3000 |
3T |
2% |
99.9% |
2000*1400*2200mm |
1200Kg |
5.8Kw |
|
QHS-6000 |
6T |
2% |
99.9% |
2100*1500*2270mm |
1350Kg |
6.3Kw |
|
QHS-9000 |
9T |
2% |
99.9% |
2150*1400*2380mm |
1500Kg |
6.5Kw |
|
QHS-18000 |
18T |
2% |
99.9% |
2000*1750*2400mm |
1950Kg |
7.2Kw |
|
Optional RO water treatment machines in the carbonated filling line |
||||||
|
Model |
Capacity(liter per hour) |
|||||
|
RO-1000 |
1000LPH |
|||||
|
RO-3000 |
3000LPH |
|||||
|
RO-5000 |
5000LPH |
|||||
|
RO-6000 |
6000LPH |
|||||
|
RO-10000 |
10000LPH |
|||||
|
Optional glass bottle carbonated filling machine in the carbonated filling line |
||||||
|
Model |
Capacity(bottle per hour) |
|||||
|
DCGFG12-12-4 |
1000-2000BPH |
|||||
|
DCGFG18-18-6 |
3000-4000BPH |
|||||
|
DCGFG24-24-8 |
6000-7000BPH |
|||||
|
DCGFG32-32-10 |
8000-10000BPH |
|||||
|
DCGFG40-40-12 |
10000-12000BPH |
|||||
|
If you need plastic bottle carbonated filling line, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us. |
||||||
The whole line including
Water treatment system
★ Automation grade: Automatic / Semi-automatic
★ Capacity range: 250L—30T per hour can be chosen.
★ Material of three pre-filters:SUS304 / FRP
★ Membrane brand: HYDECANME/DOW/GE OSMONICS/Saehan/Toray
★ Optional device: water tank, sodium ion exchanger,UV sterilizer,water storage tank
★ Water pump:NangFang pump
Film shrinking packing machine
★ The film shrink packing is used to pack scattered bottles into a whole group.We have Manual wrapping Shrink Packing Machine, Semi-Automatic PE Film Heat Shrink Packing Machine, L Type Automatic PE Film Heat Shrink Wrapping Machine,Linear type High Speed Automatic Shrink Packing and Color film orientation shrink packing machine.
★ How to choose the machine? You need to tell us what kind of film you need and what kind of bottle arrangement you need.
