4000 BPH Monoblock Bottling Machine

I'm Online Chat Now

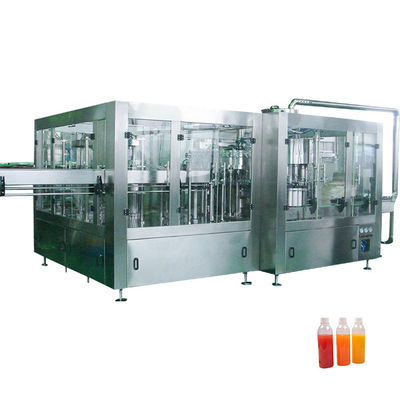

4000 BPH Monoblock Bottling Machine

China 4000 BPH Monoblock Bottling Machine supplier
4000 BPH Monoblock Bottling Machine supplier 4000 BPH Monoblock Bottling Machine supplier 4000 BPH Monoblock Bottling Machine supplier 4000 BPH Monoblock Bottling Machine supplier

Large Image :  4000 BPH Monoblock Bottling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: CE,ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden package
Delivery Time: 35 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 15 Sets Per Months
Detailed Product Description
Product Name: Monoblock Liquid Filling Machine Automatic Grade: Auto
Type: Monoblock Bottle Type: PET / Can
Capacity: 4000BPH Application: Juice|Tea|Beverage|Hot Filling|Sport Drinks
High Light:

4000 BPH Monoblock Bottling Machine

,

monoblock liquid filling machine

,

Monoblock Filling And Capping Machine

4000 BPH Monoblock Bottling Machine





Quick Detail:

  1. Full automatic, No bottle no filling, No cap machine stop.
  2. Easy operate for changing different bottle volume.
  3. CE & SGS Certificate
  4. Customizable
  5. Capacity: 2000-4000BPH
  6. Application: Juice, energy drink, tea beverage etc. hot filling.
  7. Designed applicable bottle: 0.2L-2L round PET bottle
  8. Designed applicable cap: plastic screw cap.



Description:



1. High efficient hot filling machine/filler range from 1000bph to 20000bph, can apply to juice, tea, sport drinks, function drinks, etc.

2. Rinsing/Filling/Capping 3-in-1 Monoblock

Size of bottle: 200ml-2000ml round PET bottle.

Cap type: 28~38mm standard plastic screw caps
Method of bottle transferring: By holding neck
Products: Tea/juice/energy drink/milk beverage.



Structure:

-Base

-Rinser

-Filler
-Capper

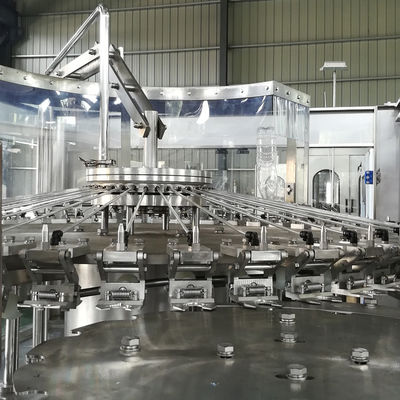

(1). Rinser


Rotative rinsing turret one treatment, fixed nozzles, with grippers.
The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

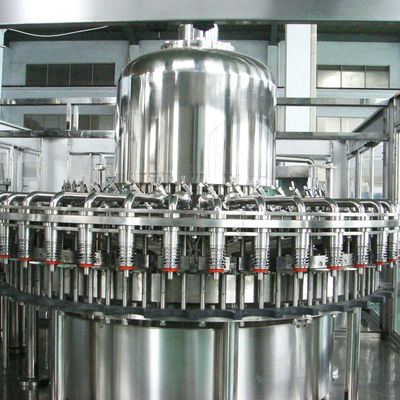

 (2). Filler


The starwheel drive the bottles always "by holding bottle neck" through the rinsing, filling and capping steps. For different types of bottle, it is easy to adjust the structure by our specialized design.
Product bowl can reduce the loss of heat. If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recirculation tank and be pumped return to UHT again to be sterilized and heated.

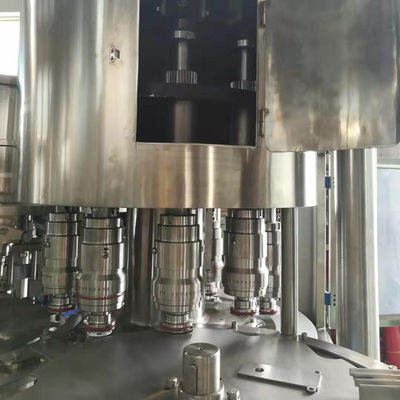

(3). Capper



Rotative capping turret, suitable to the application of plastic screw caps on PET bottles

The fixed part consists of the cap-sorting bowl, the cap feeding elevator with relevant motor and the cam actuating the capping heads.

The heads are raised and lowered by the action of a follower that is riding on a shaped cam.





Applications:



1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

2. Energy drink / Juice

3. Tea beverage

4. Pure water/mineral water/portable water



Specifications:



Capacity:500ml

2000-4000b/h

Suitable Bottle:

Height: 150-310(mm)

Diameter: φ50-φ92(mm)

Suitable Cap:

Plastic Screw Cap

Filling Pressure:

0.6Mpa

Power

5.88kw

Size

2400×1670×2350mm

Weight

2500kg
