| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | CE，ISO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 15 Sets Per Months |
| Name: | Carbonated Soft Drink Filling Machine | Bottle Shape: | Round Or Square |
|---|---|---|---|
| Capacity: | 7000-7500BPH | Cap Style: | Plastic Screw Cap |
| Processing: | Japan & Germany | Warranty: | 1 Year |
| High Light: | Monoblock Soft Drink Bottling Machine,7500 BPH Bottling Machine,3 in 1 Carbonated Soft Drink Machine |
||

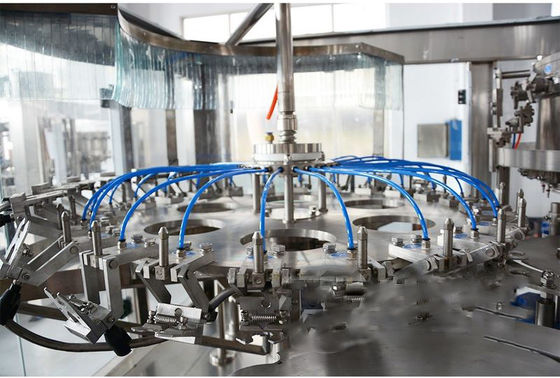

Plastic Screw Cap 3 in 1 Monoblock Soft Drink Bottling Machine
Description:
1. Soft drink filling machine is mainly used in the carbonted beverage filling with gas.
2. This filling machine is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated drink water and so on.
3. Soft drink filling machine is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system.
4. The automatic carbonated beverage filling machine capacity is from 7000b/h to 7500b/h
5. This soft drink filling machine's construction is advanced, The performance is stable.
6. The operation and maintain are easy. And the speed of automatic carbonated beverage filling machine can be adjusted infinitively and accords with the standards.
Our machines are suitable for:
Specifications:
|
Model |
CGFD8-8-3 |
CGFD16-12-6 |
CGFD18-18-6 |
CGFD24-24-8 |
|
Rinsing Head No |
8 |
16 |
18 |
24 |
|
Filling Head No |
8 |
12 |
18 |
24 |
|
Capping Head No |
3 |
6 |
6 |
8 |
|
RatedCapacity |
1200-1500BPH |
2500BPH |
3500-4000BPH |
7000-7500BPH |
|
Overall Size |
2000*1600*2300mm |
2200*1600*2300mm |
2450*1900*2300mm |
2750*1180*2400mm |
|
Weight |
2T |
2.2T |
3.0T |
4.0T |
|
Power(KW) |
3KW |
3.5kw |
4.0kw |
4.8kw |
|
Rated Voltage |
380V |
380V |
380V |
380V |
Quick Detail:
Capacity: 7000-7500bph
Function: washing filling capping 3 in 1
Name: 3 in 1 soft drink filling machine / 0.3 - 2L Bottle Filling Machine
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Technology: Advanced
After sales service provided: Engineers available to service machinery overseas .
Standard: 3 in 1 filling standard
