| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | CE，ISO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 15 Sets Per Months |
| Name: | Fruit Pulp Juice Filling Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Dimension(L*W*H): | 4200X2600X2700MM | Capacity: | 9000BPH For 500ml Bottle |
| Driven Type: | Mechanical | Material: | SUS304/316 |
| Bottle Size: | 330ml-2L | Bottle Type: | PET Plastic Bottle |
| High Light: | 9000 BPH Filling Machine,SUS304 Aseptic Bottle Filling Machine,Automatic Aseptic Bottle Filling Machine |
||

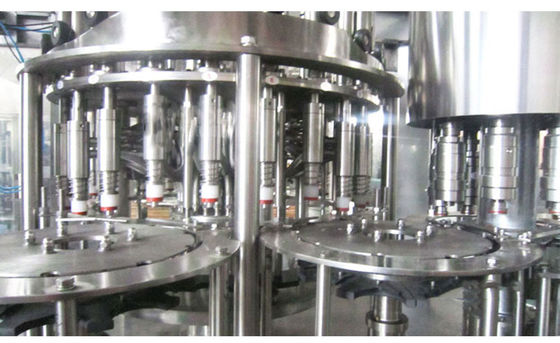

SUS304 500ml Bottle Monoblock Aseptic Bottle Filling Machine
Machine description:
Our Automatic Aseptic Bottle Filling Machine of 3 in 1 is a new design which is introduced from foreign countries basic technology. Also we designed it with our own engineers when customers have some higher requirements.This machine combines 3 washing, filling and capping functions in one unit. It is very convenient to change bottle size by using bottleneck clamping and bottle suspending technology. The advanced programmable PLC is equipped to control the main machine. The main electric components are all imported from the advanced countries. The parts which will touch water are made of SUS304 stainless steel.
The Automatic Aseptic Bottle Filling Machine as the high degree of automation, beautiful shape, convenient operation and high productivity. All these advantages can help you save time and labor cost. It is an ideal machine to produce fruit pulp juice .
Main technical parameter
|
Model |
RCGF 14-12-4 |
RCGF 18-18-6 |
RCGF 24-24-8 |
RCGF 32-32-8 |
RCGF 40-40-10 |
RCGF 50-50-15 |
|
Rinsing heads |
14 |
18 |
24 |
32 |
40 |
50 |
|
Filling heads |
12 |
18 |
24 |
32 |
40 |
50 |
|
Capping heads |
4 |
6 |
8 |
8 |
10 |
15 |
|
Suitable bottle size |
H:170-320mm Dia:50-100mm Volume: 330-2000ml Plastic caps |
|||||
|
Cleaning pressure(MPa) |
0.25-0.3 |
|||||
|
Capacity(b/h) |
3000 |
3500 |
6000 |
9000 |
11000 |
18000 |
|
Dimension(mm) |
2100*1800 *2700 |
2600*2100 *2700 |
3200*2300 *2700 |
4200*2600 *2700 |
4800*2800 *2700 |
5700*3600 *2700 |
|
Power(kw) |
2.2 |
3.5 |
3.8 |
5.5 |
7.5 |
10 |
|
Weight(kg) |
2300 |
3500 |
4600 |
6500 |
8500 |
10000 |
Details show
Washing part: offers thorough clean water. A simplistic design with minimal parts offers dependable container control and ease of maintenance.
Filling part: use all metal (not plastic) 304 stainless steel contact parts gives consistent accurate fill levels, & adopts the gravity filling, no drip during filling.
Capping part: Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
